In-House Infrastructure

Machining Facilities

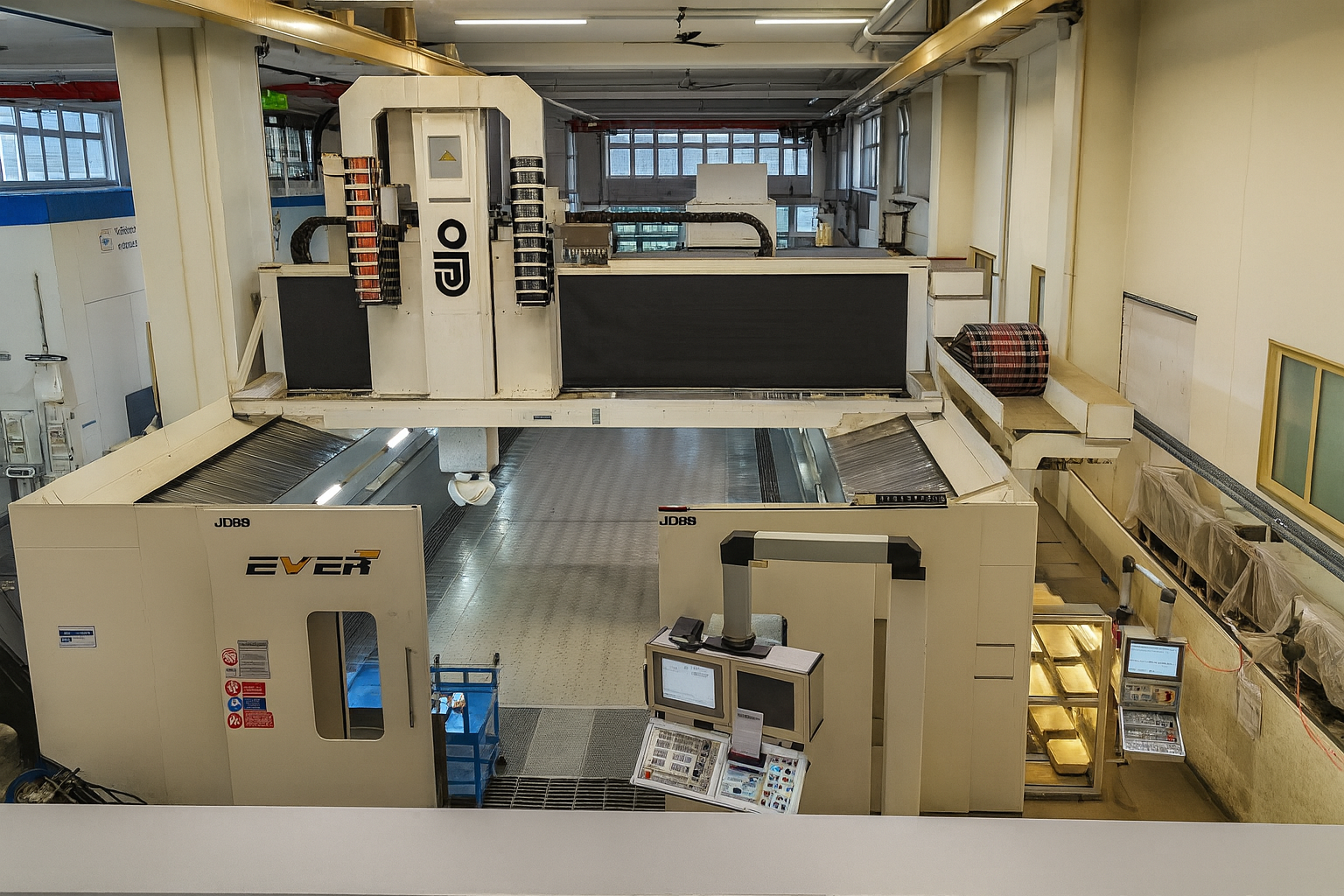

Technical Details Sizes
Control Heidenhain iTNC 530 HSC
Travel X 10.000 mm
Travel Y 4.000 mm
Travel Z 1750 mm
Distance Between Columns 5000 mm
Spindle Speed up to 5000 rpm
ATC 180 Places

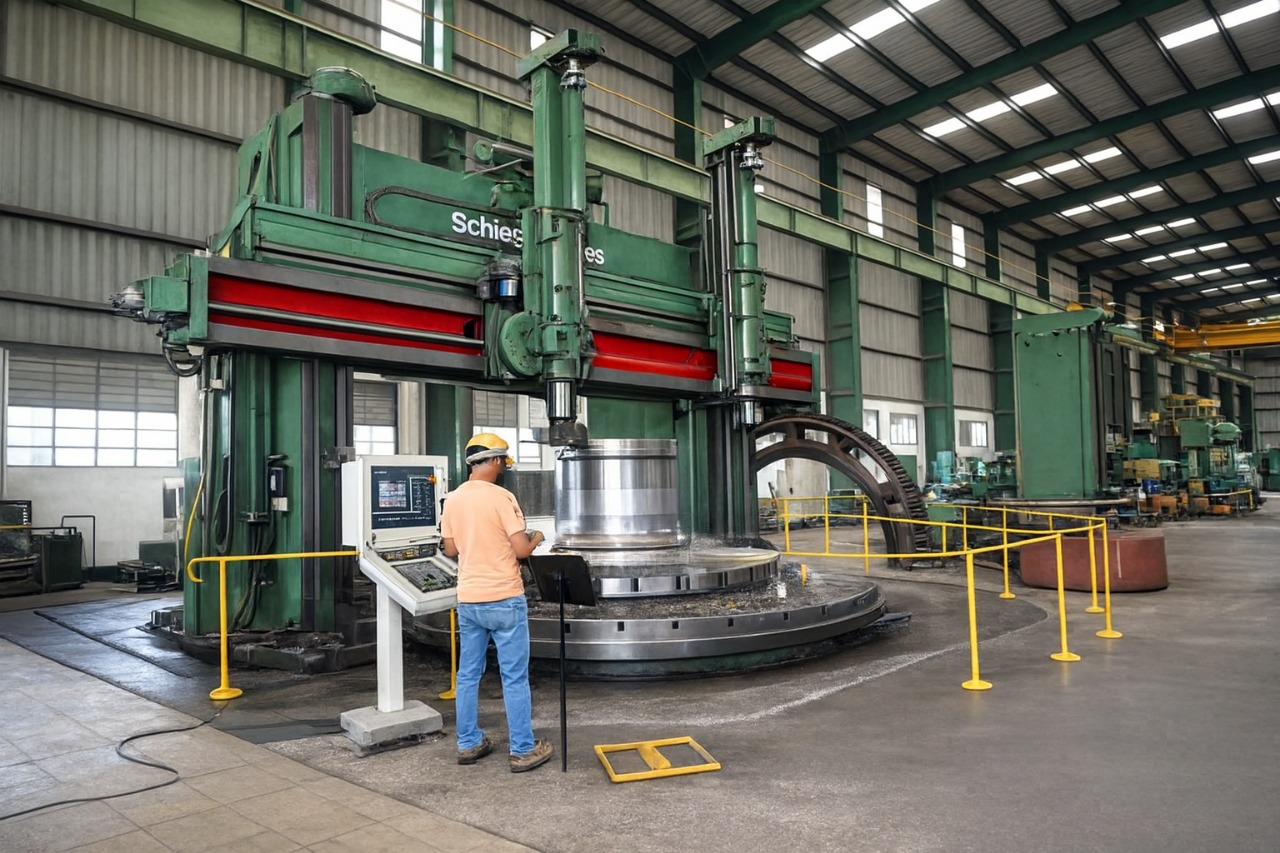

technical details Sizes
Max. Swing Dia 16000 mm
Table Dia 6300 mm
Max. Job Height 5300 mm
Max. Ram Travel 2100 mm
No. of Ram ONE
LIVE SPINDLE ISO -60
Max . Load Capacity 120 Tons.
Controller Siemens 828D
technical details Sizes
Max. Swing Dia 16000 mm
Table Dia 6300 mm
Max. Job Height 5300 mm
Max. Ram Travel 2100 mm
No. of Ram ONE
LIVE SPINDLE ISO -60
Max . Load Capacity 120 Tons.
Controller Siemens 828D
Technical Details Sizes
Max. Module (With Hob Cutter) 40
Max. Module (With Milling Cutter) 55
Table Hole Dia 800 mm
Max. Load Capacity 80 Tons.
Table Dia 3600 mm
Max. Dia of Gear – Wheel (External) 10000 mm
Max. Tooth Width 1500 mm
Max. Dia of Gear – Wheel (Internal) 8000 mm
Min. Dia of Gear Wheel (Internal) 2000 mm
Min. Dia of Gear Wheel (External) 800 mm
technical details Sizes
Table Dia 4000 mm
Max .Dia of Gear – Wheel ( External ) 6000 mm
Max. Tooth Width 1500 mm
Min. Dia of Gear Wheel ( External ) 800 mm
Max .Dia of Gear – Wheel ( Internal ) 5000 mm
Min. Dia of Gear Wheel ( Internal ) 1000 mm
Max. Module ( With Hob Cutter ) 40
Max. Module ( With Milling Cutter ) 55
Table Hole Dia 800 mm
Max .Load Capacity 60 Tons.
technical details Sizes
Table Dia 4000 mm
Max .Dia of Gear – Wheel ( External ) 6000 mm
Max. Tooth Width 1500 mm
Min. Dia of Gear Wheel ( External ) 800 mm
Max .Dia of Gear – Wheel ( Internal ) 5000 mm
Min. Dia of Gear Wheel ( Internal ) 1000 mm
Max. Module ( With Hob Cutter ) 40
Max. Module ( With Milling Cutter ) 55
Table Hole Dia 800 mm
Max .Load Capacity 60 Tons.
technical details Sizes
Table Dia 1920 mm
Max. Dia of Gear – Wheel (External) 3000 mm
Max. Tooth Width 1000 mm
Min. Dia of Gear Wheel (External) 300 mm
Max. Module (With Hob Cutter) 32
Max. Module (With Milling Cutter) 40
Table Hole Dia 600 mm
Max. Dia of Gear – Wheel (Internal) 3000 mm
Min. Inner Dia of Gear Wheel (Internal) 900 mm

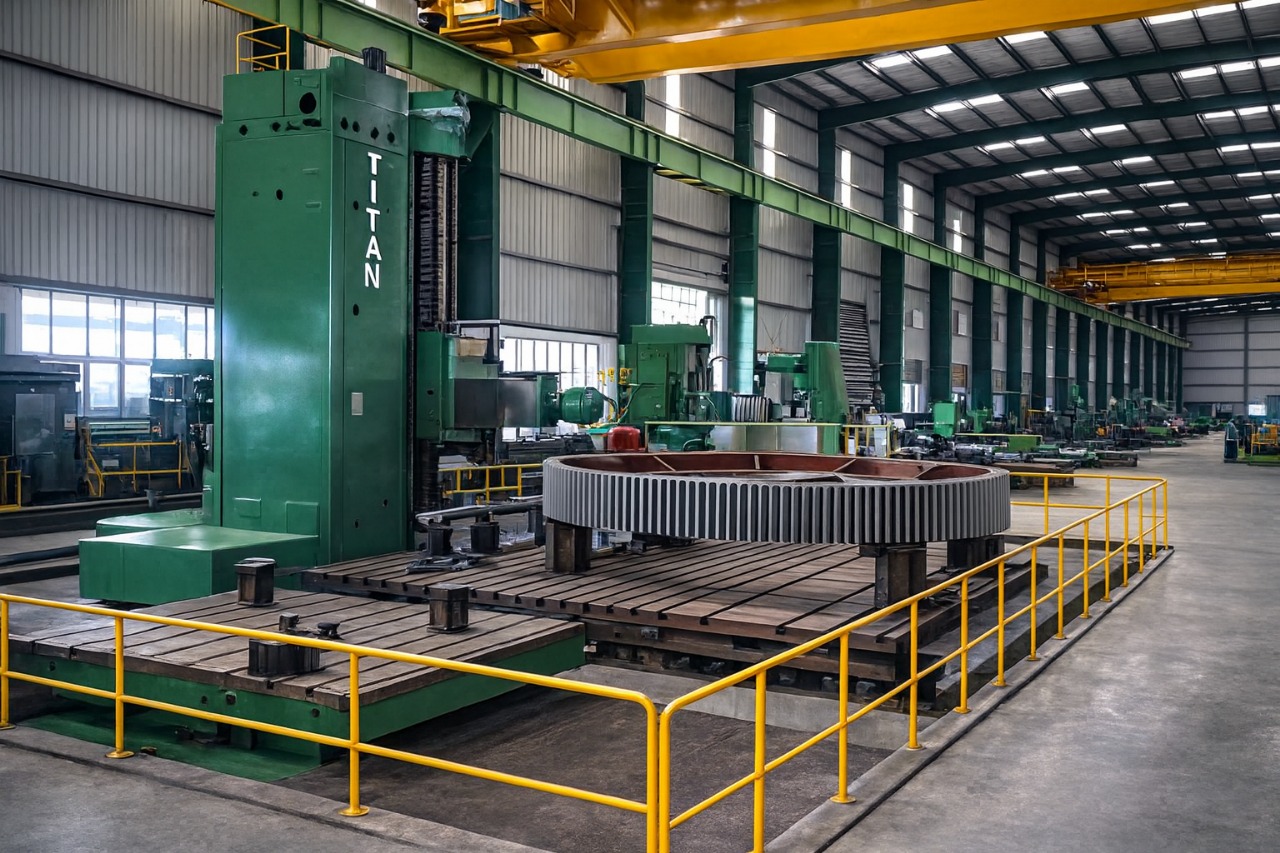

technical details Sizes
Max. Head Travel Y –Axis -3800 mm
Max. Column Travel X – Axis - 9000 mm
Max. Spindle Travel Z –Axis - 850 mm
Spindle Dia 180 mm
Max. Ram Travel W –Axis -1250 mm
Rotary Table Size 3500 x3500 mm
Rotary Table Travel U –Axis – 3000 mm
Table Load Capacity 70 Tonnes.
Floor Plate Size 6000 x 6000 mm
technical details Sizes
Max. Head Travel Y –Axis -3800 mm
Max. Column Travel X – Axis - 9000 mm
Max. Spindle Travel Z –Axis - 850 mm
Spindle Dia 180 mm
Max. Ram Travel W –Axis -1250 mm
Rotary Table Size 3500 x3500 mm
Rotary Table Travel U –Axis – 3000 mm
Table Load Capacity 70 Tonnes.
Floor Plate Size 6000 x 6000 mm
technical details Sizes
Max. Swing Dia 7000 mm
Table Dia 4400 mm
Max. Job Height 2700 mm
Max. Ram Travel 1100 mm
No. of Ram 02 Nos.
Max. Hight Under Cross Rail 3000 mm
Max .Load Capacity 40 Tons.

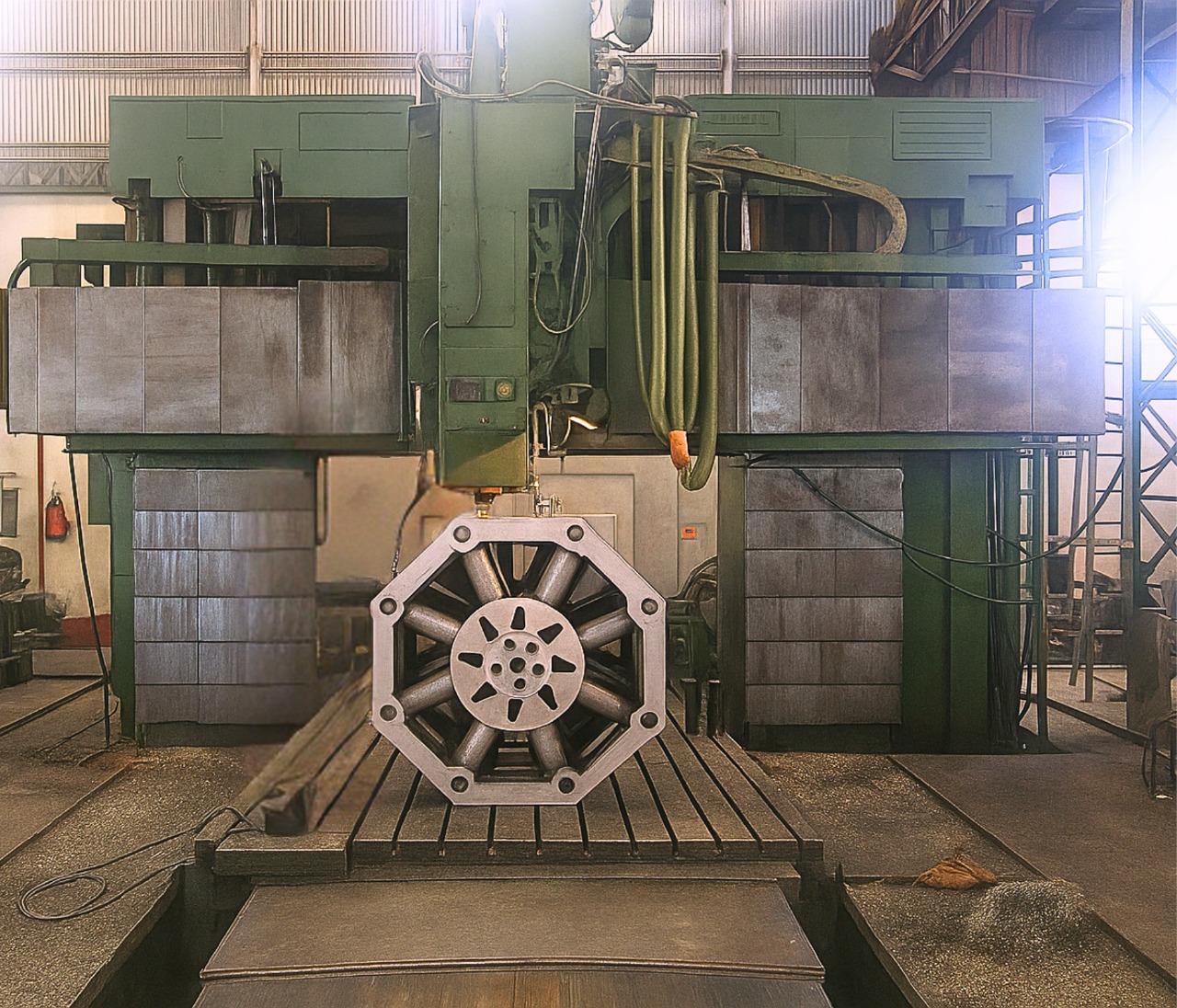

technical details Sizes
Max. Table Travel x-axis 4000 mm
Max. Ram Travel z-axis 1500 mm
Max. Head Travel y-axis 3000 mm
Max.Cross Rail Travel w-axis 1900 mm
Table –Width x Length 2200 x 4850 mm
Max. Column Gap 2500 mm
All axis CNC
technical details Sizes
Max. Table Travel x-axis 4000 mm
Max. Ram Travel z-axis 1500 mm
Max. Head Travel y-axis 3000 mm
Max.Cross Rail Travel w-axis 1900 mm
Table –Width x Length 2200 x 4850 mm
Max. Column Gap 2500 mm
All axis CNC
Technical Details Sizes
Chuck Diameter 3000 mm
Swing DIA 5200 mm
Max Job Length 2000 mm
Spindle Speed Range 1-135 Max.Rev/Min
Max. Load Capacity 30 Tons
Motor Capacity 22 Kw
No. Of Tool Post 2
Tool Post - 1 X - 900 mm Z - 2000 mm V - 800
Tool Post - 2 X - 900 mm Z - 2000 mm V - 800
Optional Feature Chip Conveyor

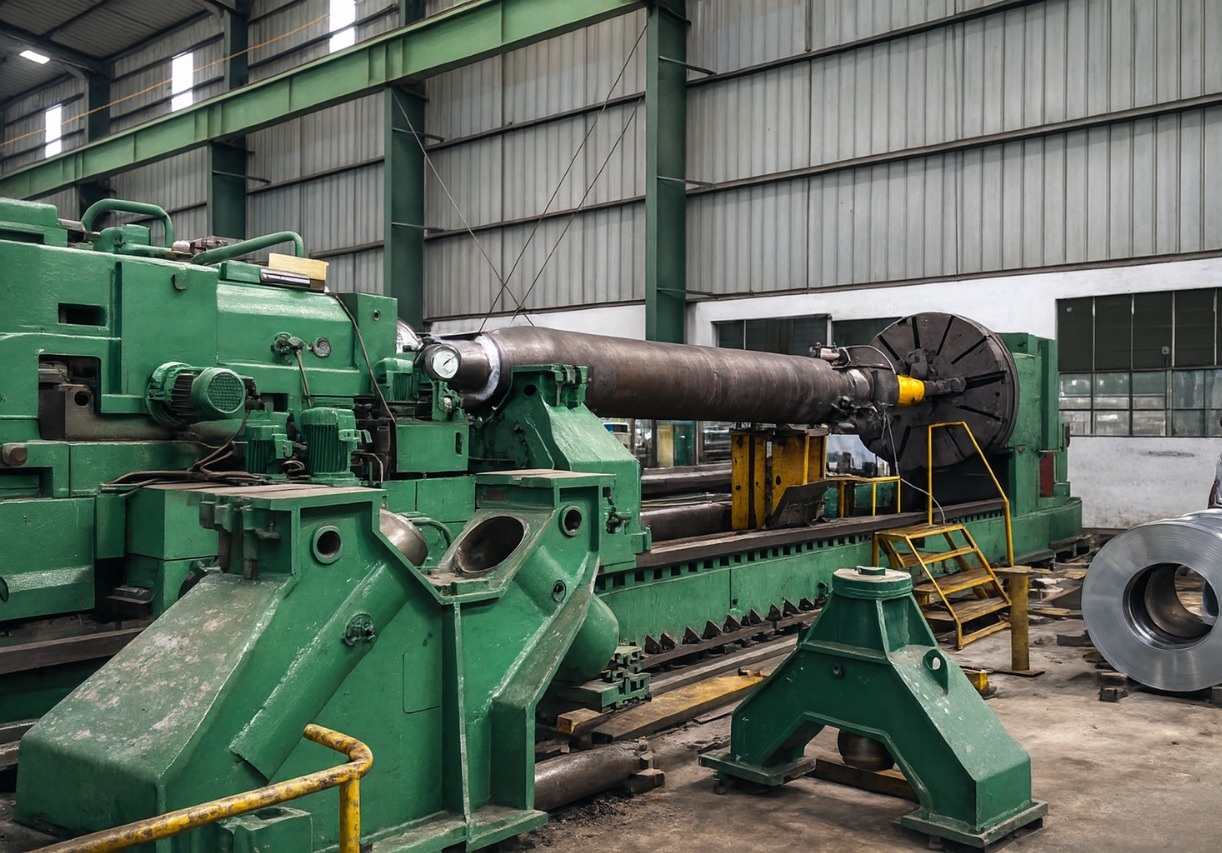

technical details Sizes
Max. Swing Dia 4600 mm
MAX job Length 17500 mm
Max. Load Capacity 120 Tonnes
technical details Sizes
Max. Swing Dia 4600 mm
MAX job Length 17500 mm
Max. Load Capacity 120 Tonnes

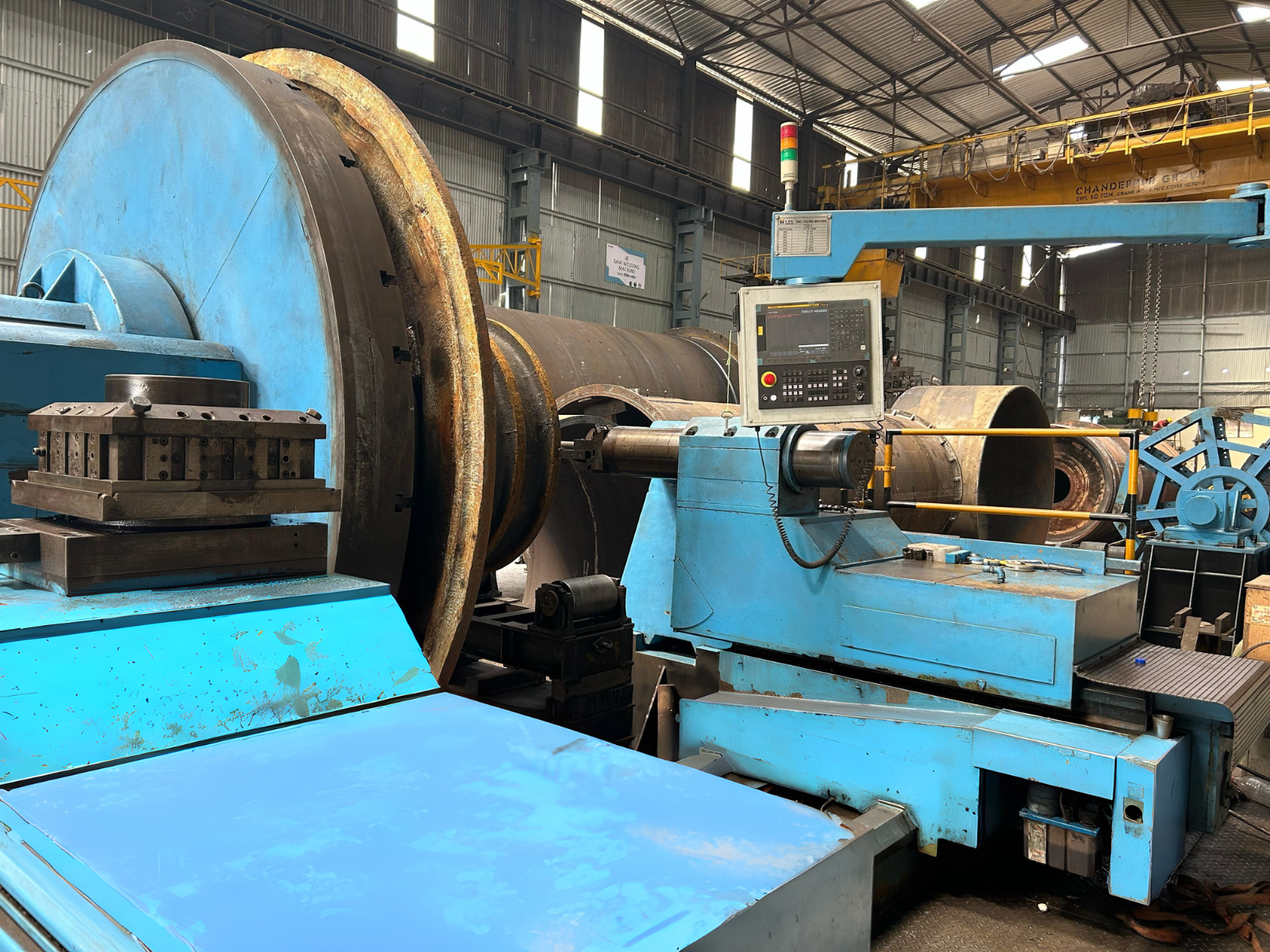

technical details Sizes
Chuck Dia 1800 mm
Max .Swing Dia Over Bed 2400 mm
Max .Swing Dia Over Carriage 2000 mm
Max. Length Between Centres 8000 mm
Max. Dia with Steady 600 mm
Load Capacity 40 Tons.
Max. Cross Slide Travel 1000 mm
Max. Load Capacity with Roller Supports 50 Tons.
technical details Sizes
Max. Head Travel Y –Axis -2000 mm
Max. Column Travel X – Axis - 3000 mm
Max. Spindle Travel Z –Axis - 900 mm
Spindle Dia 130 mm
Column Cross Travel 600 mm
Rotary Table Size 1700 x2300 mm
Rotary Table Travel U –Axis – 1500 mm
Table Load Capacity 20 Tonnes.
technical details Sizes
Max. Head Travel Y –Axis -2000 mm
Max. Column Travel X – Axis - 3000 mm
Max. Spindle Travel Z –Axis - 900 mm
Spindle Dia 130 mm
Column Cross Travel 600 mm
Rotary Table Size 1700 x2300 mm
Rotary Table Travel U –Axis – 1500 mm
Table Load Capacity 20 Tonnes.
technical details Sizes
Max. Swing Dia 5000 mm
Table Dia 2800 mm
Max. Job Height 1900 mm
Max. Ram Travel 1000 mm
No. of Ram 03 Nos.
Min. Dia By Side Ram 1850 mm

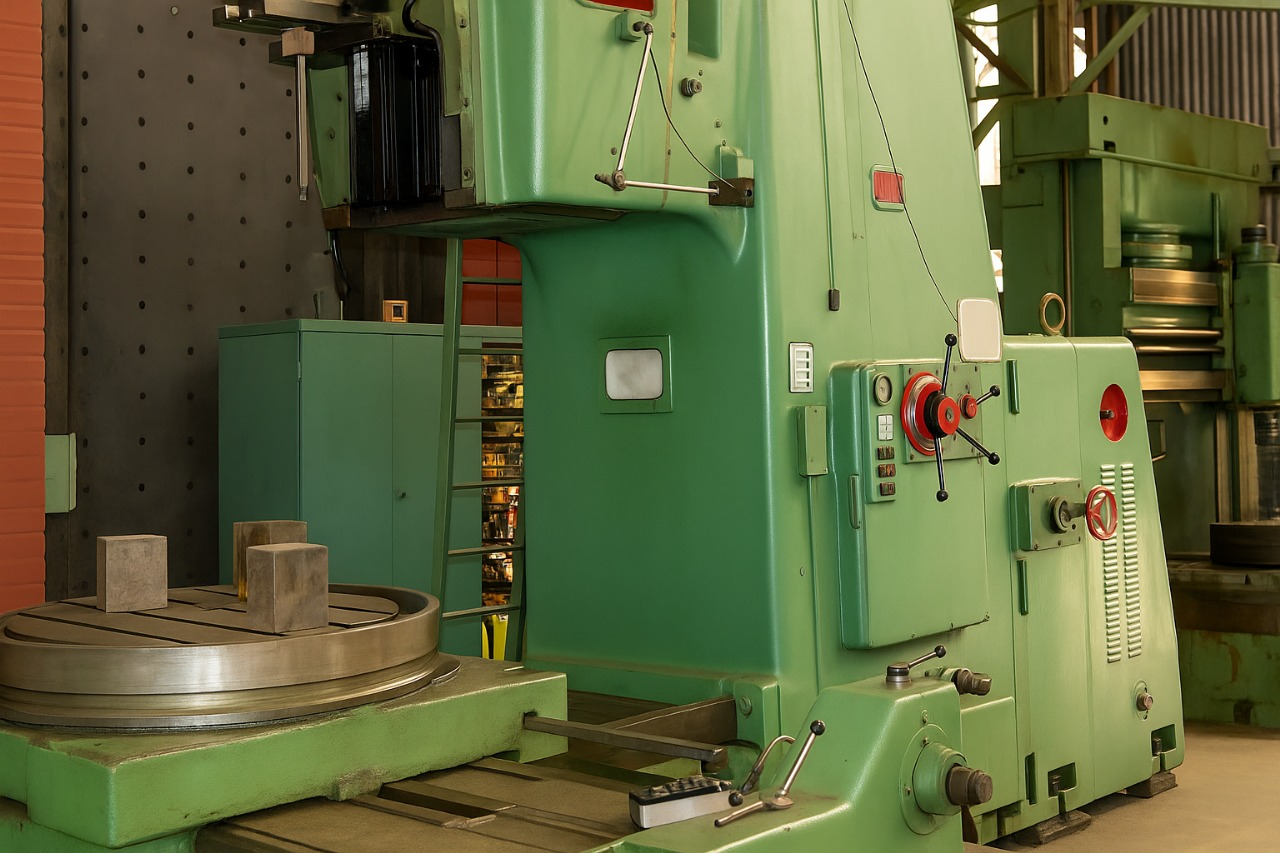

technical details Sizes
Table Dia 1000 mm
Max. Stroke 1200 mm
Table Travel X – 1500 mm
Table Travel Z - 1500 mm
Max. Load Capacity 10 Tonnes
technical details Sizes
X Axis Travel 4300 mm
Y Axis Travel 2200 mm
Z Axis Travel 400 mm
Max RPM 10000
Max Feed Rates 3 m
Controller FANUC system
technical details Sizes
Max Swing Over Bed 600 mm
Max Swing Over Carriage 475 mm
Max Turning Length 2000 mm
Spindle Speed Rang 8-800 r/min
technical details Sizes
X Axis Travel 1500 mm
Y Axis Travel 700 mm
Z Axis Travel 680 mm
RPM 8000
ATC - Stations 20
Table Size X=1700 | Y=800 | Z=600
Controller FANUC system
Feed Rate 5 m

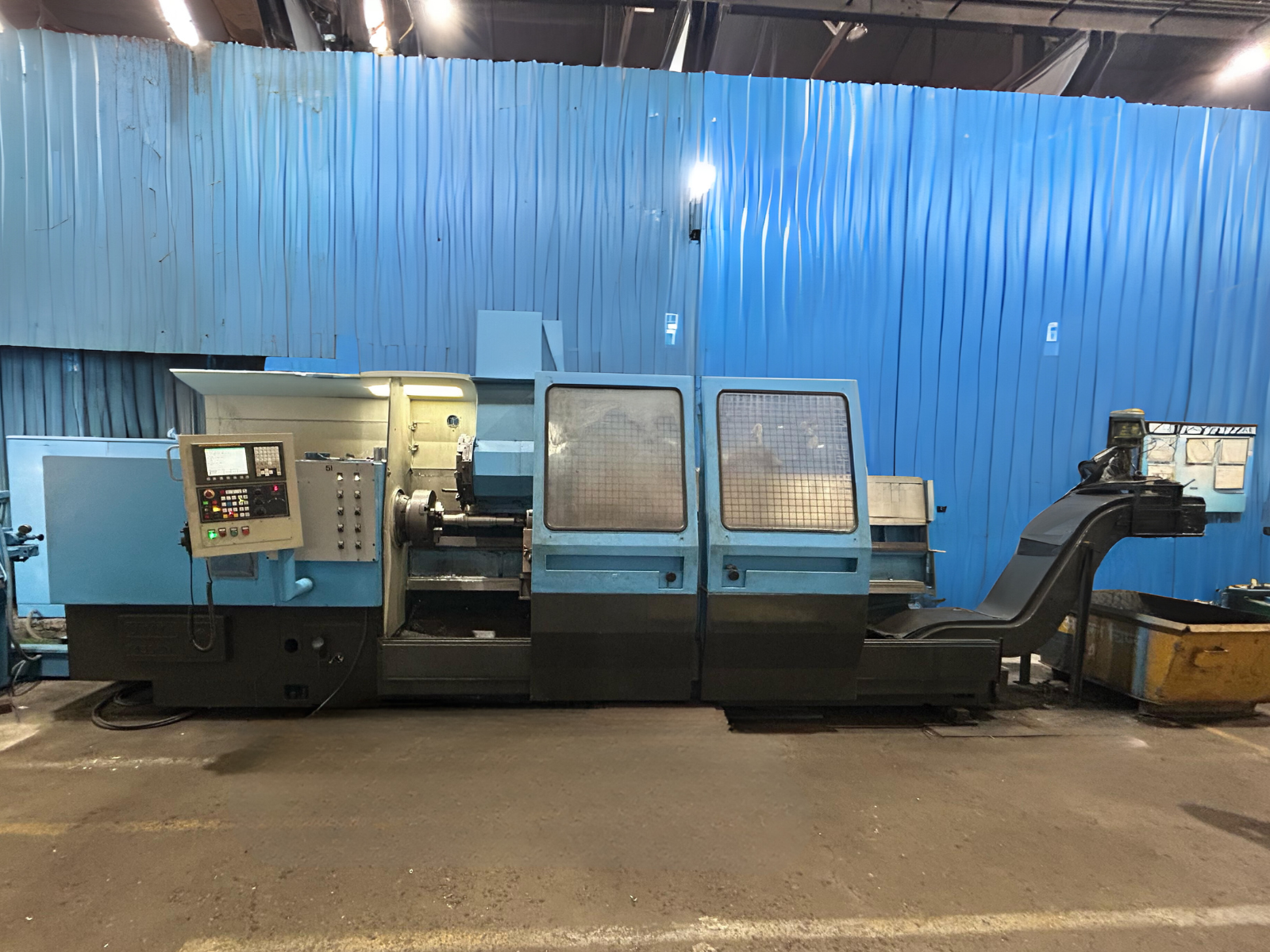

technical details Sizes
Turning Length 3000 mm
Swing over Saddle 450 mm
Swing over Bed 700 mm
Chuck Size 450 mm
System Fanuc Oi-TC
Automatic Turret 10 Stations
Model UTITA T450 CNC

We have many facilities beyond those mentioned above, including VTLs, Boring Machines, Drilling Machines (radial and universal), Milling machines, Planors, Slotters, and Horizontal lathes, each with varying capabilities and specifications.
